Some of my scans

Post by OBNRacerMan »

I became interested in 3D scanning a little more than six months ago. I have scanners of "different systems" - the first was Kinect for xBox360, then Ciclop laser appeared (which turned out to be nothing more than a toy).
One of the first “self-portraits” made with Kinect :-)
One of the first “self-portraits” made with Kinect :-)
I don’t bring scans from Ciclops, there is nothing to look at especially.

And then I, already realizing what each type of scanner can do, assembled a “normal” SLS scanner for myself, gradually improving it (improvement using cameras with better characteristics, adding a second camera, a turntable with a motorized drive for automatic circular scanning of small objects)
The minimum size of the object that was (relatively good) scanned (Russian coin, Diameter 22mm ).
The minimum size of the object that was (relatively good) scanned (Russian coin, Diameter 22mm ).

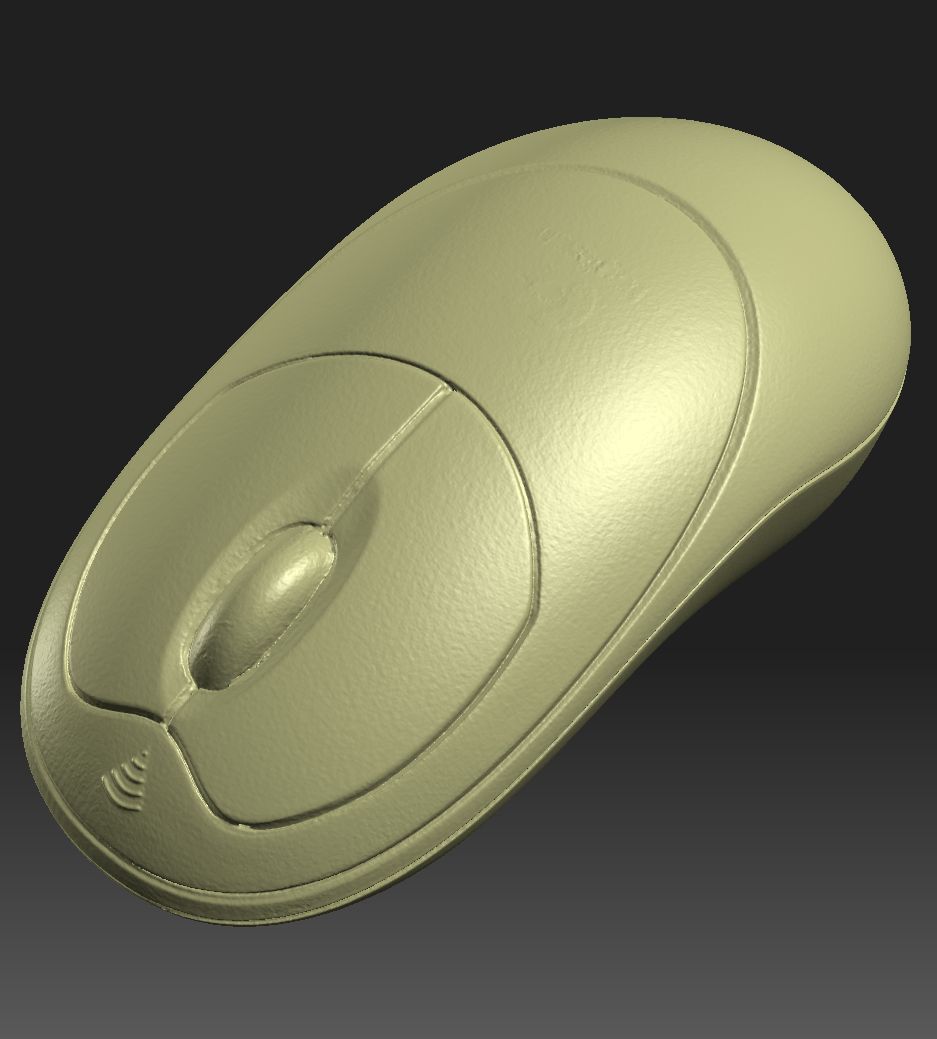

Full scan of an old computer wireless mouse - 1
Full scan of an old computer wireless mouse - 1

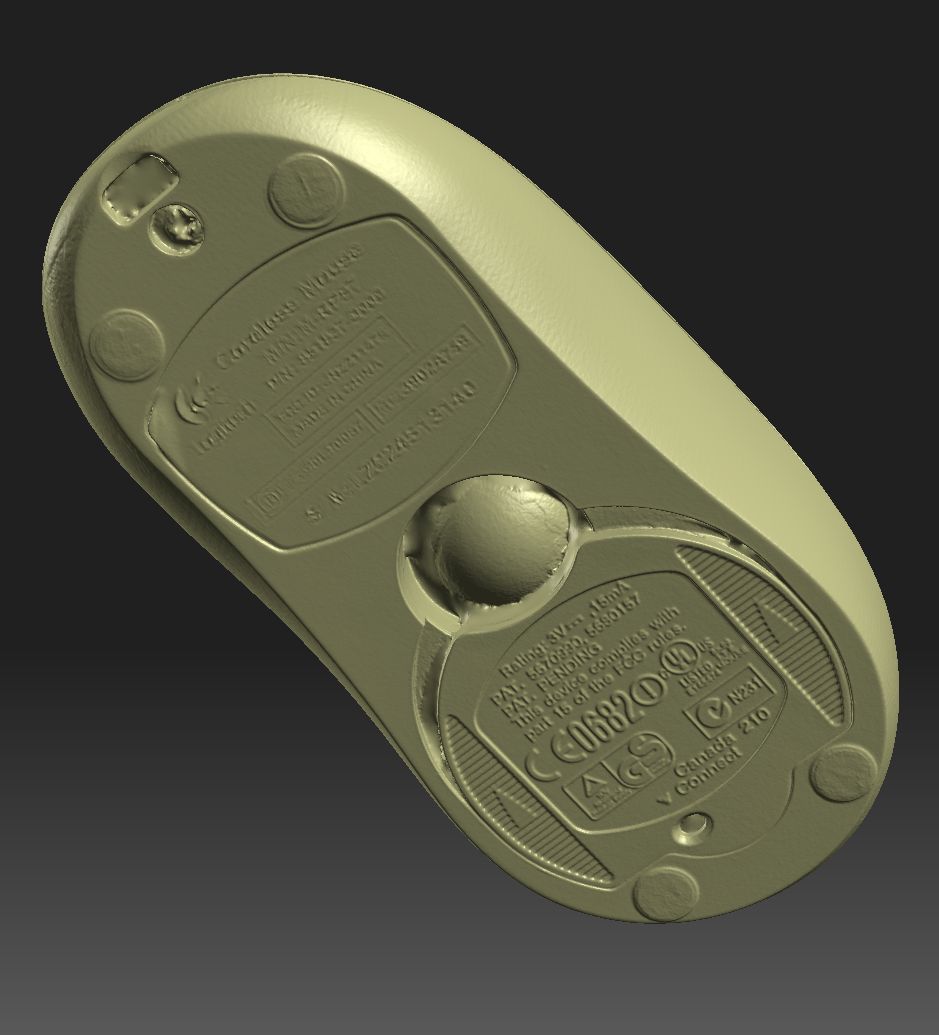

Full scan of an old computer wireless mouse - 2
Full scan of an old computer wireless mouse - 2
Full scan toy soldier
Full scan toy soldier

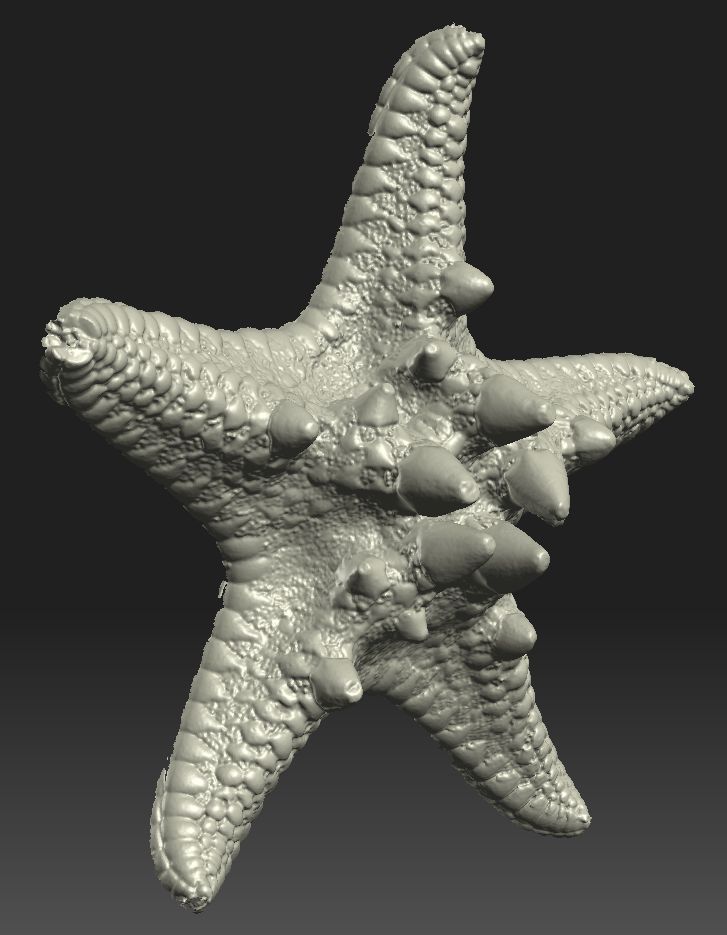

Starfish scan made yesterday (60mm diameter)
Starfish scan made yesterday (60mm diameter)

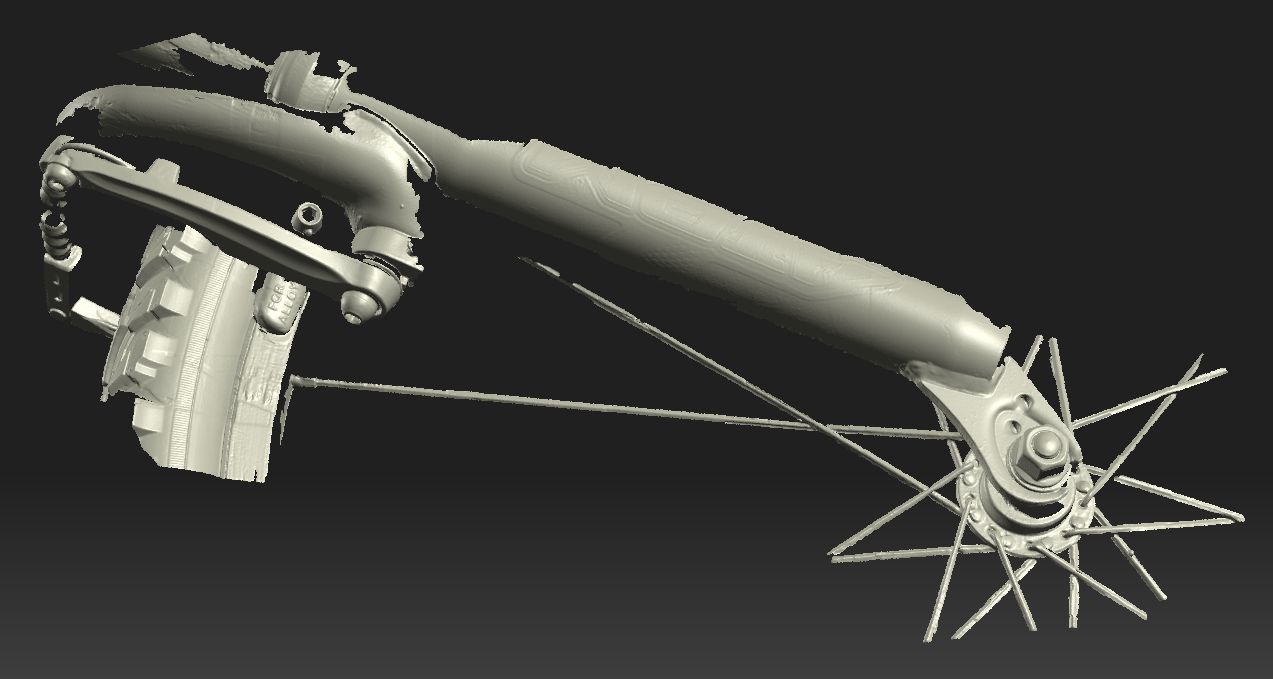

The part of the bike made up of more than 10 close-range scans (I forgot that the scanner was calibrated to a 30mm table :-) )
The part of the bike made up of more than 10 close-range scans (I forgot that the scanner was calibrated to a 30mm table :-) )
Soft: RangeVision DIY, Calibration panel/Rotary tables - RangeVision, Prj: Byintek UFO R9, Cam: Daheng Mercury MER-630-60U3M-L (USB3.0, monochrome) x2, Obj: ZLKC HM1628MP10 (F2.8, 10Mp, 16mm) x2 & Azure 3518M3M (F1.8, 3Mp, 35mm).
User avatar
Micr0
Posts: 471
Joined: 15 Nov 2016, 15:20
Location: New York City

Re: Some of my scans

Post by Micr0 »

Nice work. Do you coat any of the objects you are scanning?
µ
User avatar
OBNRacerMan
Posts: 235
Joined: 12 Aug 2019, 09:46
Location: Obninsk, Russia

Re: Some of my scans

Post by OBNRacerMan »

Micr0 wrote: 14 Aug 2019, 14:24 Do you coat any of the objects you are scanning?
No, the scan was done "as is". I don’t have anything suitable for matting yet (and using ordinary chalk or other powdered products will require thorough cleaning after scanning - which I don’t want to do :-))

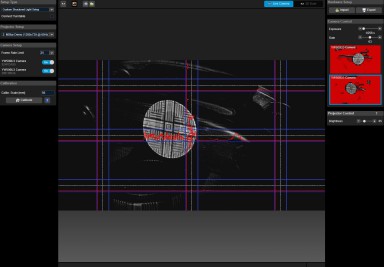

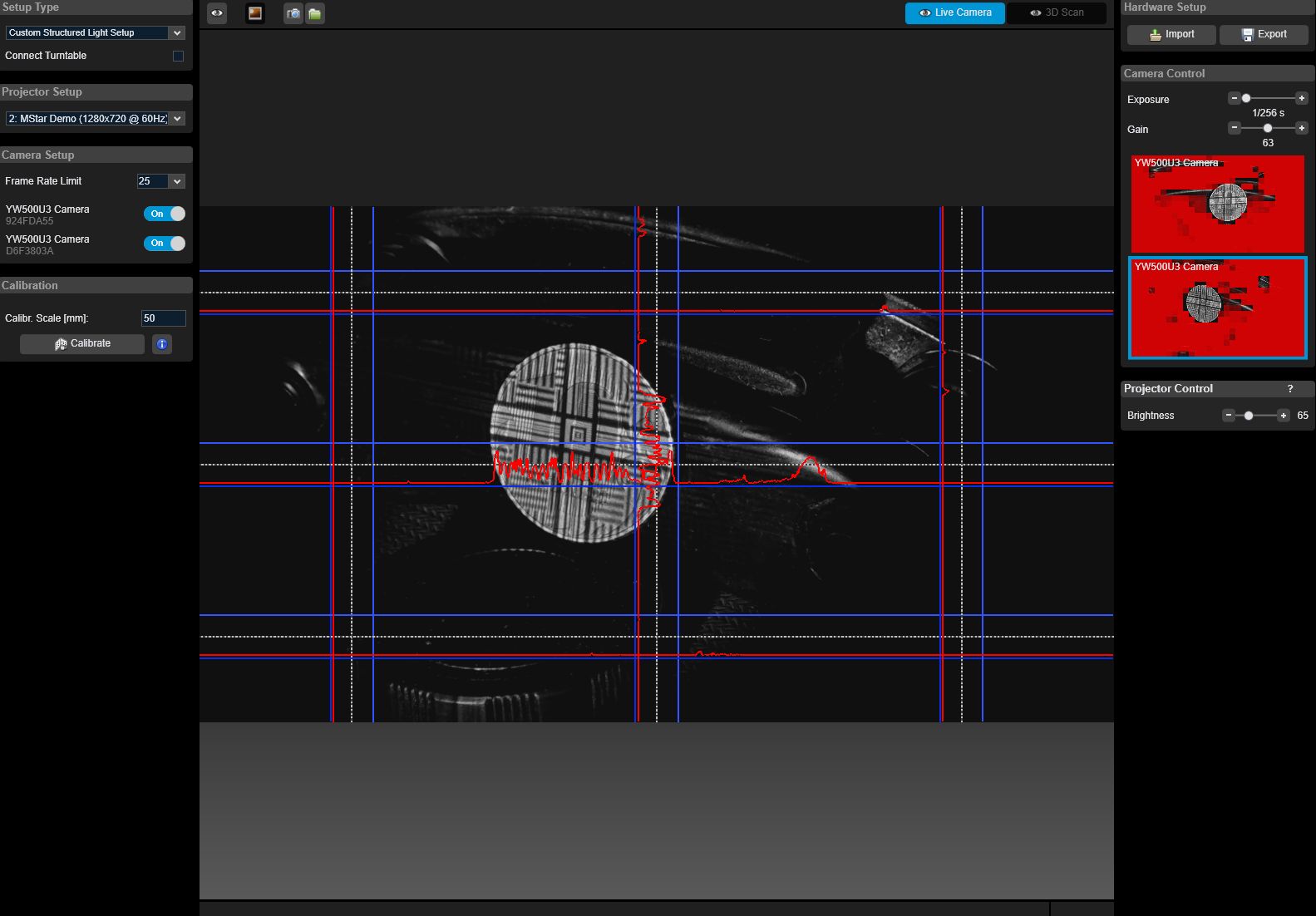

Here, for example, the coin looked like when scanning:
Screenshot from program
Screenshot from program
Soft: RangeVision DIY, Calibration panel/Rotary tables - RangeVision, Prj: Byintek UFO R9, Cam: Daheng Mercury MER-630-60U3M-L (USB3.0, monochrome) x2, Obj: ZLKC HM1628MP10 (F2.8, 10Mp, 16mm) x2 & Azure 3518M3M (F1.8, 3Mp, 35mm).
User avatar
OBNRacerMan
Posts: 235
Joined: 12 Aug 2019, 09:46
Location: Obninsk, Russia

Re: Some of my scans

Post by OBNRacerMan »

Trying to scan something big enough. I made 12 scans from one point (only rotated scanner horizontally and vertically on a tripod). I used my largest 110mm calibration chart.
View from the scan point
View from the scan point
And a little from a different angle ...
And a little from a different angle ...
Soft: RangeVision DIY, Calibration panel/Rotary tables - RangeVision, Prj: Byintek UFO R9, Cam: Daheng Mercury MER-630-60U3M-L (USB3.0, monochrome) x2, Obj: ZLKC HM1628MP10 (F2.8, 10Mp, 16mm) x2 & Azure 3518M3M (F1.8, 3Mp, 35mm).
User avatar
OBNRacerMan
Posts: 235
Joined: 12 Aug 2019, 09:46
Location: Obninsk, Russia

Re: Some of my scans

Post by OBNRacerMan »

I spread the next scan of the "rodent" (I found an old inoperative mouse at home on the shelf) Gigabyte ECO600.
The main desire is to scan "as is" without matting - and the concomitant problem is the mouse is black and glossy.
I had to take shutter speeds from 1/16s to 1/4s (and a total of 25 scans were made).

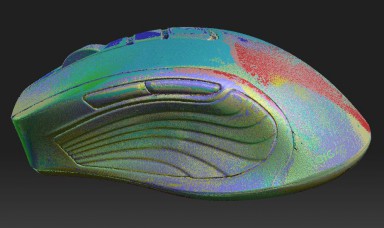

So the object looked during the scan
So the object looked during the scan

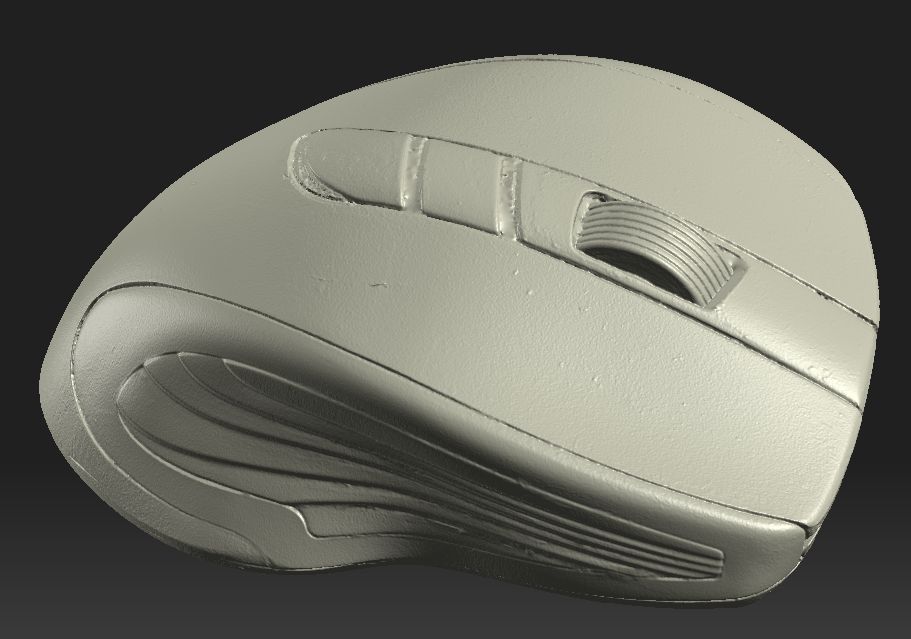

After folding the pieces it turned out like this
After folding the pieces it turned out like this

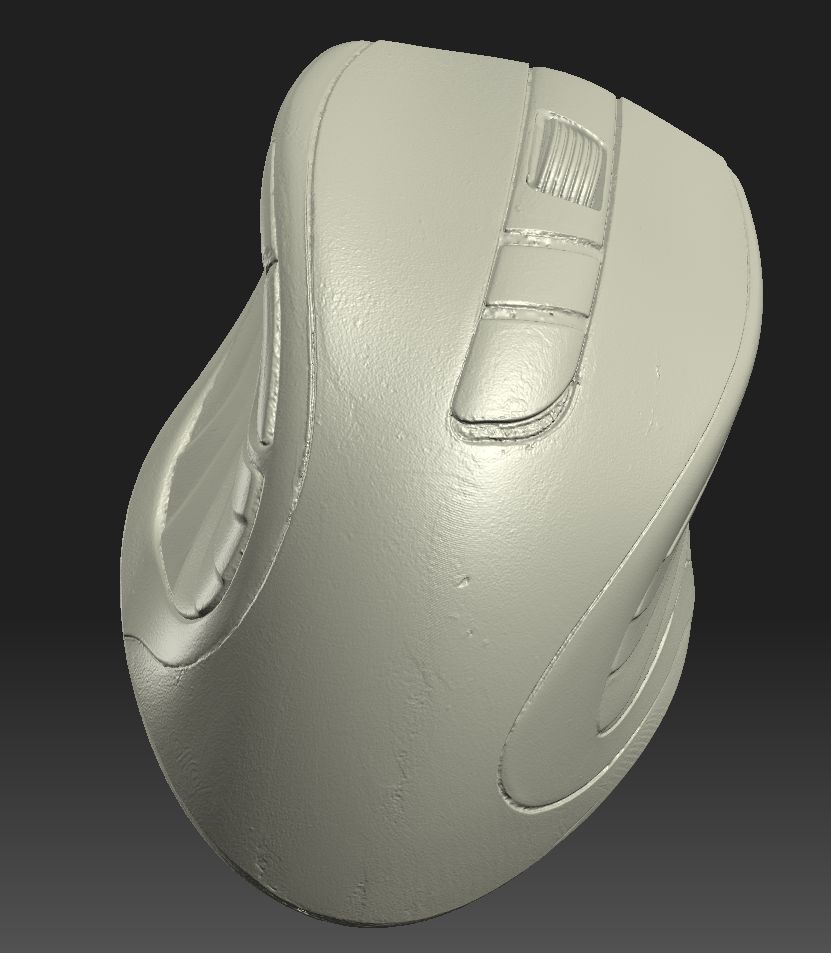

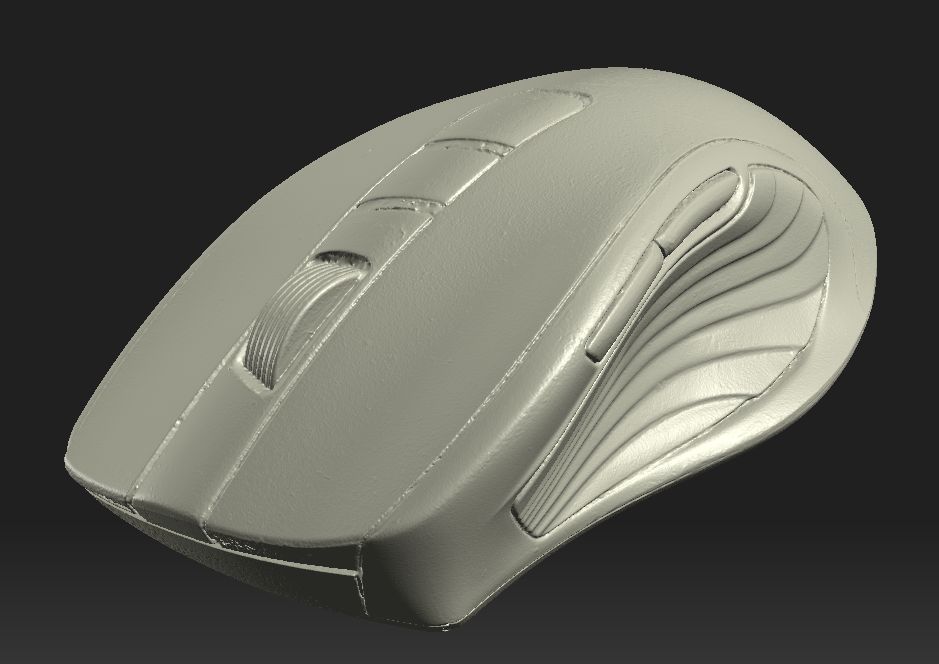

After final gluing
After final gluing
After final gluing
After final gluing
After final gluing
After final gluing
After final gluing
After final gluing
I got 11 million triangles at the output ... if not for the “noisy” cameras, I think their number without any optimizations would be an order of magnitude smaller.
P.S. I did not regret it at all about the money spent on upgrading the computer for the amount of memory - 32GB - since, at most, about 14GB was "eaten" during the scan.

The calibration was according to the 50mm table, scanning in the "composite" mode - with both cameras (in the "advanced" mode "it would be visible" would be more, but the noise is simply indecent)
Soft: RangeVision DIY, Calibration panel/Rotary tables - RangeVision, Prj: Byintek UFO R9, Cam: Daheng Mercury MER-630-60U3M-L (USB3.0, monochrome) x2, Obj: ZLKC HM1628MP10 (F2.8, 10Mp, 16mm) x2 & Azure 3518M3M (F1.8, 3Mp, 35mm).
erapip
Posts: 56
Joined: 16 Dec 2016, 07:16

Re: Some of my scans

Post by erapip »

Super details. Compliments
dental_art
Posts: 30
Joined: 06 Feb 2017, 10:58

Re: Some of my scans

Post by dental_art »

what do you mean as a turntable with a motorized drive for automatic circular scanning of small objects for david 5?
User avatar
OBNRacerMan
Posts: 235
Joined: 12 Aug 2019, 09:46
Location: Obninsk, Russia

Re: Some of my scans

Post by OBNRacerMan »

dental_art wrote: 03 Oct 2019, 16:07 what do you mean as a turntable with a motorized drive for automatic circular scanning of small objects for david 5?
Hi. I sometimes use a motorized turntable left over from a previous Cyclops primitive laser scanner.
By changing the software in the original control board for this scanner, I got the option of “almost automatic” scanning (just after the end of the next scanning step I need to manually press “S” (I programmed this button for this function), after which the table rotates by a hard-coded number of degrees and a new scan occurs). Of course, I only use the table rotation function.
Unfortunately, due to the fact that I could not fully figure out the Deviare program, I had to use just such a method (and not completely automatic, as it would be with Deviare).

Information and a detailed description of how to connect a homemade turntable to the HP3Dscan 5.60 I found here
Soft: RangeVision DIY, Calibration panel/Rotary tables - RangeVision, Prj: Byintek UFO R9, Cam: Daheng Mercury MER-630-60U3M-L (USB3.0, monochrome) x2, Obj: ZLKC HM1628MP10 (F2.8, 10Mp, 16mm) x2 & Azure 3518M3M (F1.8, 3Mp, 35mm).
martan
Posts: 81
Joined: 23 May 2018, 19:18
Location: Sweden

Re: Some of my scans

Post by martan »

I run the mentioned turntable/deviare-concept. Works like a charm.
HP 3D Scan, Optoma ML750, 2x IS DMK 23UX236 with Computar 12mm, HP calibration panel, DIY Rotary tables.
User avatar
OBNRacerMan
Posts: 235
Joined: 12 Aug 2019, 09:46
Location: Obninsk, Russia

Re: Some of my scans

Post by OBNRacerMan »

martan wrote: 04 Oct 2019, 07:26 I run the mentioned turntable/deviare-concept. Works like a charm.
And I have some kind of problem with Deviare - he does not want to track the events of the program necessary for fully automatic operation. I don’t know what’s stopping him ... maybe an antivirus ... although there are no warnings.
Soft: RangeVision DIY, Calibration panel/Rotary tables - RangeVision, Prj: Byintek UFO R9, Cam: Daheng Mercury MER-630-60U3M-L (USB3.0, monochrome) x2, Obj: ZLKC HM1628MP10 (F2.8, 10Mp, 16mm) x2 & Azure 3518M3M (F1.8, 3Mp, 35mm).
